Reinforced Concrete Wall Adequacy Check

1.0 INPUT DATA

1.1 Material Properties

f_cu = MPa Characteristic concrete cube strength

f_y = MPa Characteristic steel yield strength

E_s = MPa Steel modulus of elasticity

γ_c = Partial safety factor for concrete (Cl 6.1.2.4)

γ_s = Partial safety factor for steel (Cl 6.1.2.4)

1.2 Wall Geometry

c_c = mm Concrete cover

L_w = mm Wall length

t_w = mm Wall thickness

H_u = mm Unsupported height

Frame Type:

Top Condition:

Bottom Condition:

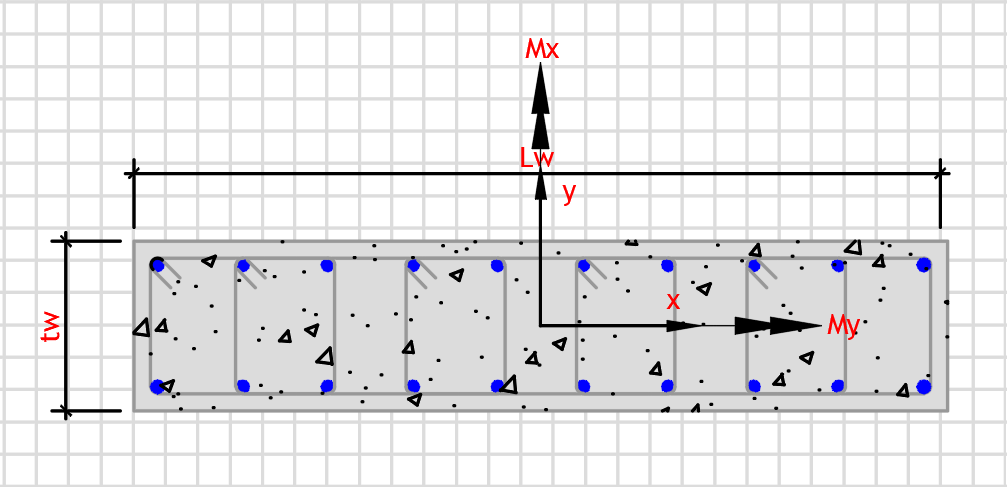

Figure 1: Wall Section

1.3 Reinforcement Details

φ_v = mm Vertical bar diameter

s_v = mm Vertical bar spacing

Layers = Number of reinforcement layers

Horizontal Reinforcement

φ_h = mm Horizontal bar diameter

s_h = mm Horizontal bar spacing

1.4 Applied Loads (ULS)

N_Ed = kN Design axial force

M_u2x = kNm In-plane moment (larger end moment)

M_u1y = kNm Out-of-plane moment (smaller end moment)

M_u2y = kNm Out-of-plane moment (larger end moment)

2.0 CALCULATIONS

2.1 Geometry Check

Effective length factor (Table 6.13)

k = 0.80 (Based on end conditions)

H_e = k × H_u

H_e = 0.80×5825 = 4660.00 mm

Wall classification

L_w/t_w = 1200/250 = 4.80

Is Wall: YES (L_w/t_w > 4 per Cl 1.4.4)

2.2 Slenderness Check (Cl 6.2.2)

Slenderness ratio

λ = H_e/t_w

λ = 4660/250 = 18.64

λ_limit = 45 (Table 6.15)

Check λ: PASS (λ = 18.64 ≤ 45)

Short vs Slender Check (Cl 6.2.2.3)

Wall Type: SLENDER (λ = 18.64 > 15)

2.3 Minimum Reinforcement (Cl 9.6)

Concrete area

A_c = L_w × t_w

A_c = 1200×250 = 300000 mm²

Provided reinforcement

A_{s,per m} = (Layers×π×φ_v²/4)×(1000/s_v)

A_{s,per m} = 2×π×20²/4×(1000/125) = 502.65 mm²/m

A_s,total = A_{s,per m} × (L_w/1000)

A_s,total = 502.65×1.2 = 603.19 mm²

Reinforcement ratio

ρ = A_s,total × 100/(L_w × t_w)

ρ = 603.19×100/(1200×250) = 0.201 %

Min Reinforcement Check: PASS (ρ = 0.201% > 0.40% and ≤ 4.0%)

2.4 Second-Order and Minimum Moments

Additional moment factor (Cl 6.2.1.4)

β_a = (1/2000) × λ²

β_a = (1/2000)×18.64² = 0.174

Curvature correction factor K (Cl 6.2.1.4.2)

K = min(1.0; (1.2 − N_Ed×1000/(A_c×f_cu))/0.7)

K = min(1.0; 1.2-1742×1000/(300000×45)/0.7) = 1.00

Additional moment

M_a = (N_Ed × t_w × β_a × K)/1000

M_a = 1742×250×0.174×1.00/1000 = 75.83 kNm

Minimum eccentricity (Cl 6.2.1.2)

e_min,y = max(0.05×t_w; 20)

e_min,y = max(0.05×250; 20) = 20.00 mm

e_min,x = max(0.05×L_w; 20)

e_min,x = max(0.05×1200; 20) = 60.00 mm

M_y,min = N_Ed × e_min,y/1000

M_y,min = 1742×20/1000 = 34.84 kNm

M_x,min = N_Ed × e_min,x/1000

M_x,min = 1742×60/1000 = 104.52 kNm

Combined out-of-plane moment

M_iy = max(0.4×M_u2y; 0.4×M_u1y + 0.6×M_u2y)

M_iy = max(0.4×0.50; 0.4×0.35+0.6×0.50) = 0.44 kNm

Total design moments

M_total,y = max(M_u2y; M_iy+M_a; M_u1y+M_a/2; M_y,min)

M_total,y = 76.27 kNm

M_total,x = max(M_u2x; M_x,min)

M_total,x = 448.00 kNm

2.5 Capacity Analysis - Biaxial Interaction

Idealization of Wall into 4-Bar Column for Design

Steel geometry

d₂ = c_c + φ_h + φ_v/2

d₂ = 35+10+20/2 = 55.00 mm

d = t_w − d₂

d = 250-55 = 195.00 mm

ε_cu = 0.0035

Design stresses

f_y,d = f_y/γ_s

f_y,d = 500/1.15 = 434.78 MPa

f_cu,d = 0.67×f_cu/γ_c

f_cu,d = 0.67×45/1.5 = 20.10 MPa

2.6 Out-of-Plane Capacity (M_Rd,y)

Neutral axis position (solved from equilibrium)

x_y = 87.50 mm (Limited per Cl 6.1.2.4)

Force components

F_cy = f_cu,d×L_w×min(0.9×x_y; t_w)/1000

F_cy = 1974.38 kN

F_s1y = (A_s,total/2 × min(max(ε_cu × (x_y - d₂) / x_y × E_s; -f_y,d); f_y,d)) / 1000

F_s1y = 920.24 kN

F_s2y = (A_s,total/2 × min(max(ε_cu × (x_y - d) / x_y × E_s; -f_y,d); f_y,d)) / 1000

F_s2y = -1311.27 kN

Out-of-plane moment capacity

M_Rd,y = (F_cy×(t_w/2 − 0.45×x_y) + F_s1y×(t_w/2 − d₂) + F_s2y×(t_w/2 − d))/1000

M_Rd,y = 76.27 kNm

2.7 In-Plane Capacity (M_Rd,x)

Neutral axis position (solved from equilibrium)

x_x = 343.75 mm (Limited per Cl 6.1.2.4)

Force components

F_cx = f_cu,d×t_w×min(0.9×x_x; L_w)/1000

F_cx = 1742.70 kN

F_s1x = (A_s,total/2 × min(max(ε_cu × (x_x - d₂) / x_x × E_s; -f_y,d); f_y,d)) / 1000

F_s1x = 1311.27 kN

F_s2x = (A_s,total/2 × min(max(ε_cu × (x_x - (L_w - d₂)) / x_x × E_s; -f_y,d); f_y,d)) / 1000

F_s2x = -1311.27 kN

In-plane moment capacity

M_Rd,x = (F_cx×(L_w/2 − 0.45×x_x) + F_s1x×(L_w/2 − d₂) + F_s2x×(L_w/2 − (L_w − d₂)))/1000

M_Rd,x = 448.00 kNm

2.8 Biaxial Interaction Check

Balance point capacity

N_uz = (0.35×f_cu×(A_c − A_s,total) + 0.67×f_y×A_s,total)/1000

N_uz = 0.35×45×(300000-603.19)+0.67×500×603.19/1000 = 6308.91 kN

Exponent α_n

α_n = min(2.0; max(1.0; 1.0 + (N_Ed/N_uz − 0.2)/0.6))

α_n = min(2.0; max(1.0; 1.0+(1742/6308.91-0.2)/0.6)) = 1.00

Quick biaxial interaction check

(M_total,x/M_Rd,x)^α_n + (M_total,y/M_Rd,y)^α_n

= (448.00/2172.54)^1.10 + (66.94/327.91)^1.10 = 0.35

Biaxial Check: FAIL (2.00 ≥ 1)

2.9 Biaxial Design per Clause 6.1.2.4

Interpolation factor β (Table 6.14)

N_ratio = N_Ed×1000/(A_c×f_cu)

N_ratio = 1742×1000/(300000×45) = 0.129

β = max(min(−1.16×N_ratio + 1; 1); 0.3)

β = max(min(-1.16×0.129+1; 1); 0.3) = 0.85

Effective dimensions

h' = min(0.75×L_w; L_w − d₂)

h' = min(0.75×1200; 1200-55) = 900.00 mm

b' = t_w − d₂

b' = 250-55 = 195.00 mm

Effective moment ratio check

M_total,x/h' = 448/900 = 0.498

M_total,y/b' = 76.27/195 = 0.391

Effective moment

M_eff,x = M_total,x + β×(h'/b') (X-axis dominates)

M_eff,x = 448 + 0.85×(900/195) = 722.00 kNm

Utilization ratio

Utilization = M_eff,x/M_Rd,x

Utilization = 722/448 = 1.61

Slender Wall Check: FAIL (Utilization = 1.61 ≥ 1)

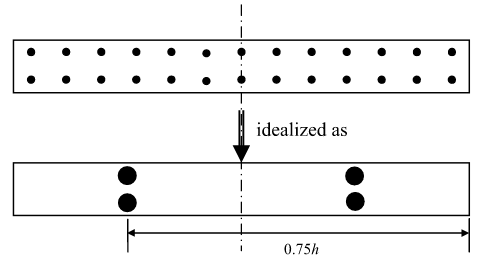

Figure 2: Idealization of Wall into 4-Bar Column

2.10 Axial Capacity Check (Cl 6.5.2)

Axial capacity

N_Rd = (0.35×f_cu×(A_c − A_s,total) + 0.67×f_y×A_s,total)/1000

N_Rd = 0.35×45×(300000-603.19)+0.67×500×603.19/1000 = 6308.91 kN

Axial utilization

N_Ed/N_Rd = 1742/6308.91 = 0.276

Axial Capacity Check: PASS (N_Ed = 1742.00 kN ≤ N_Rd = 6308.91 kN)

2.11 Horizontal Reinforcement Check (Cl 9.6.3)

Required horizontal reinforcement

A_sh,min1 = 0.001×A_c

A_sh,min1 = 0.001×300000 = 300.00 mm²

A_sh,min2 = 0.25×A_s,total

A_sh,min2 = 0.25×603.19 = 150.80 mm²

A_sh,min = max(A_sh,min1; A_sh,min2)

A_sh,min = max(300; 150.80) = 300.00 mm²

Provided horizontal reinforcement

A_sh,prov = (Layers×π×φ_h²/4)×(H_e/s_h)

A_sh,prov = 2×π×10²/4×(4660/200) = 366.44 mm²

Horizontal Reinforcement: PASS (A_sh,prov = 366.44 mm² ≥ A_sh,min = 300.00 mm²)

* OUTPUT SUMMARY *

Design Summary

Wall Classification: WALL

Slenderness Ratio, λ = 18.64 ≤ 45

Wall Type: SLENDER

Effective Height, H_e = 4660.00 mm

Total Reinforcement, A_s,total = 603.19 mm²

Reinforcement Ratio, ρ = 0.201 %

Min Reinforcement Check: PASS

Additional Moment, M_a = 75.83 kNm

In-Plane Capacity, M_Rd,x = 448.00 kNm

Out-of-Plane Capacity, M_Rd,y = 76.27 kNm

Biaxial Check: FAIL

Slender Wall Utilization: 1.61

Axial Capacity: PASS

Horizontal Reinforcement: PASS

RESULTS

DESIGN CHECK - INCREASE WALL CAPACITY OR REDUCE LOADS

NOTE: ALWAYS VERIFY BI-AXIAL RESULTS USING MORE ACCURATE TOOLS LIKE Oasys AdSec or spColumn
